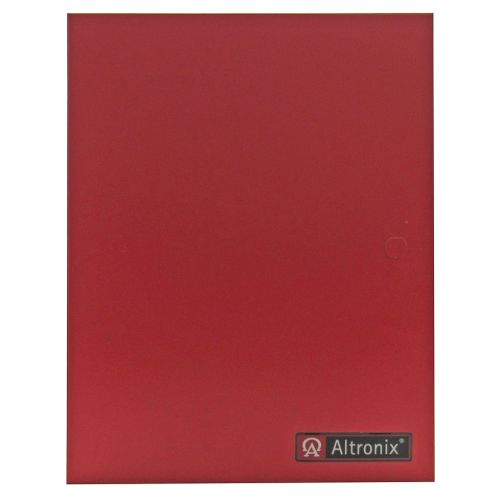

Altronix AL802ULADA NAC Power Extender
$725.00
Altronix AL802ULADA NAC Power Extender is an 8A remote power supply/battery charger. It may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP).
Input:
120VAC, 60Hz, 5A, supplied by a maximum 15A dedicated branch circuit.
Output:
Four (4) regulated supervised NAC output circuits, 24VDC, 2.5A maximum current. One (1) aux. special application 24VDC power output circuit 1A, nonsupervised total output current must not exceed current 8A in Alarm Condition.
Battery:
Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH batteries connected in series.
