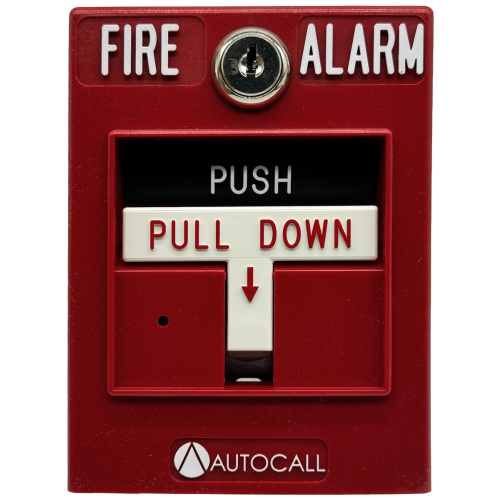

AutoCall A4099-9006 Addressable Dual-Action Pull Station

The AutoCall A4099-9006 is an addressable double-action manual pull station for AutoCall IDNet systems with push-to-access, pull-down activation. It provides individual station addressing, a visible status LED, tamper-resistant key reset, and a compact NEMA 1 indoor design that mounts to standard or compatible surface boxes. Key Specifications: Type: Addressable double-action push manual station Core Function(s): Requires the front PUSH plate to be pressed before the pull lever can be activated for alarm initiation Loop/Protocol: IDNet communications Power: Powered by IDNet communications over a single wire pair; 1 address per station Indicators/UI: LED flashes during communications and remains steady when activated Addressing: 8-position DIP switch Reset Method: Key reset with tamper-resistant lock Wiring: Screw terminals for 18 AWG to 14 AWG wire Construction: Red Lexan polycarbonate housing with white raised lettering and white pull lever Operating Range: 32 to 120 F indoor Humidity Range: Up to 93 percent RH at 100 F Dimensions: 5 in H x 3.75 in W x 1 in D Compatible Accessories: A2099-9828 - Institutional cover kit 2975-9178 - Surface mount steel box, red 2975-9022 - Cast aluminum surface mount box, red 2099-9814 - Surface trim plate for Wiremold box System Compatibility: Compatible with AutoCall fire alarm control panels that support IDNet addressable manual stations
