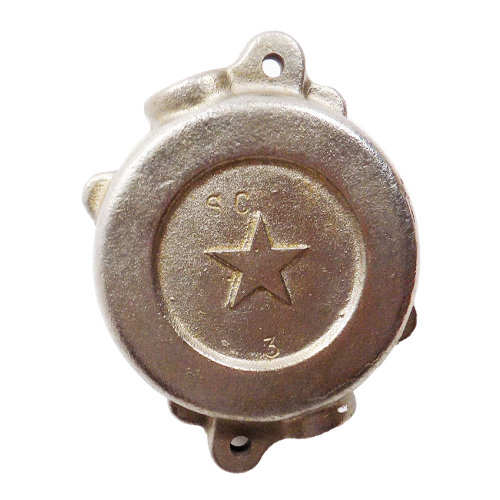

Chemtronics 502A Special Assembly Heat Detector
$100.00
The Chemtronics 502A Special Assembly Heat Detector is a conventional Rate-of-Rise and Fixed Temperature [190°F (88°C)] Thermal Detector.
One circuit, normally open. In all circuits, current flow through Series 500 should be limited to the following values:
6-125 Volts A.C., 3.0 Amps.
6-28 Volts D.C., 1.0 Amps.
125 Volts D.C., 0.3 Amps.
250 Volts D.C., 0.1 Amps.
Designed for use in applications requiring protection against weather, moisture (internal condensation), and explosive atmospheres.
