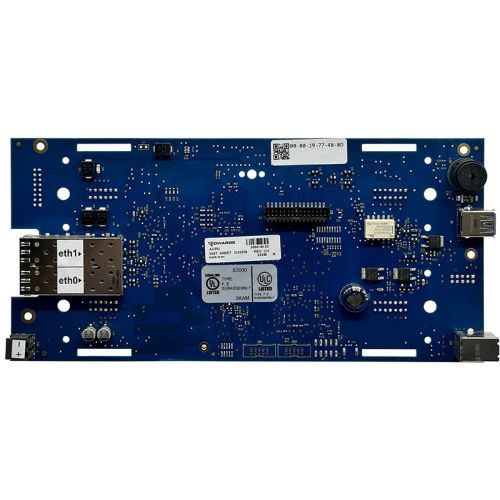

Edwards EST 4-CPU EST 4 Central Processing Module

EST4’s Central Processing Unit, the 4-CPU, is a control panel card that manages data generated by local modules and acts as a nexus for system-wide network communication. COMPATIBLE OPTIONAL ACCESSORIES and RELATED EQUIPMENT: — 4-AUDTELS Audio and Telephone Interface/Riser Source Module — 4-COMREL Common Relay Module — 4-NET-MM SFP Network Controller, Multimode, Dual-Fiber, 100Base-FX 1310nm — 4-NET-SM SFP Network Controller, Single-Mode, Dual-Fiber, 100Base-LX10 1310nm — 4-NET-SMH SFP Network Controller, Single-Mode, high power output, Dual-Fiber, 100Base-LX40 1310nm — 4-NET-TP SFP Network Controller, 2Mbps Shared TX/RX, Twisted Pair — 4-NET-TP-HC SFP Network Controller, 0.3Mbps Shared TX/RX, High Capacitance Twisted Pair — 4-NET-CAT SFP Network Controller, CAT5 UTP Copper, 100Base-TX — 4-NET-SMD SFP Network Controller, Single-Mode, Single-Fiber, Downlink, 100Base-BX10-D 1550nm/1310nm Tx/Rx — 4-NET-SMU SFP Network Controller, Single-Mode, Single-Fiber, Uplink, 100Base-BX10-U 1310nm/1550nm Tx/Rx — 4-USBHUB USB Multiport Hub Module — 4-CABLUSBLG Cable, USB 3.0 A-B, Male, Long — 4-CABL0542 Cable interconnects the 4-CPU to the inner door rail when no 4-LCD display is installed in the cabinet.
