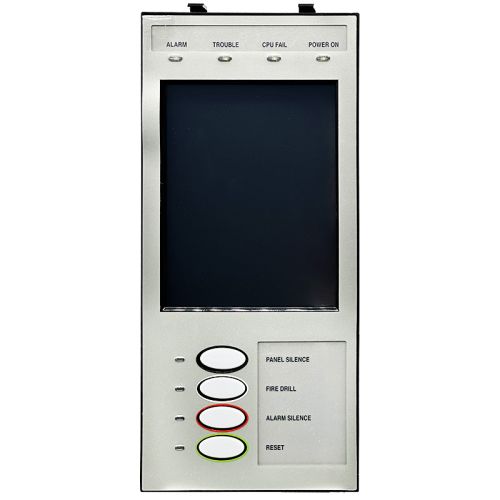

Edwards EST 4-LCD EST4 LCD Display Module

Edwards EST 4-LCD EST4 LCD Display Module is the Main color touchscreen LCD display for EST 4 Systems. FEATURES: • Large Easy-to-Read Display Area. Displays eight events, 768 10-point characters. • Full Color for Detail-rich User Experience. 262,144 colors with support for custom wallpaper. • Displays System Tree View on One Screen Page. Quick drill-downs to find devices, no look-up tables required. • Context-sensitive User Interface. One sign-in determines user privileges and available devices. • Color-coded Event Queue, History Log, Status Report. At-a-glance identification of priorities. • User Configurable Image Display. Displays a customized image that appears on the LCD’s home screen when no active events are present. COMPATIBLE ACCESSORIES and RELATED EQUIPMENT: — 4-LCDANN 4-LCD w/ cable for Annunciator enclosure 4-4ANN, 4-6ANN mounting — 4-LCDLE 4-LCD w/ cable for 3-CAB5B, 7B, 14B, 21B, 4-8ANN, 16ANN and 24ANN mounting — 4-3LCD LCD display for use in EST3 panels, allows reuse of EST3 UI layer in retrofit applications. The 4-3LCD can be mounted in remote closet cabinets where an LCD display is needed. The display mounts on the 4-CPU module. — 4-CABL0502 Service replacement cable, 4-LCD to 4-CPU flex interconnect cable for CAB5, 7, 14, 21. — 4-CABL0504 Service replacement cable 4-LCD to 4-ANNCPU cable for use in 4-2ANN, 4ANN, 6ANN annunciator configuration. — 4-CABL0541 Service replacement cable 4-3LCD to 4-CPU cable for use in 3-CAB5B, 7B, 14B, 21B, RCC series. — 4-CABL0505 Cable, Door Rail to Rail, 13 Inch for 4-CAB16D(R), 4-CAB24D(R), or 4-CAB24D(R)L. — 4-CABL0507 Cable, Door Rail to Rail, 11.3 Inch for 4-CAB8D(R). — 4-CABL0542 Cable, for use with 4-CPU or 4-ANNCPU where no LCD is installed on Inner Door.
