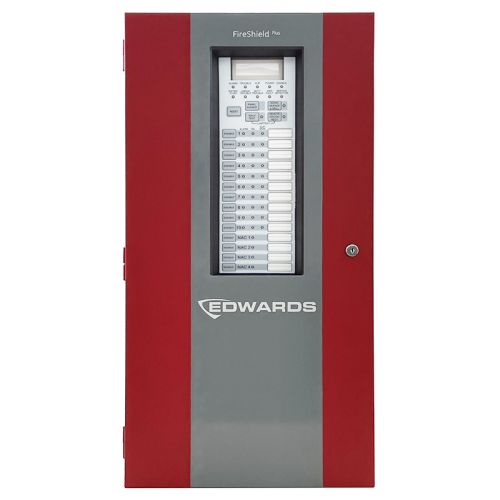

Edwards EST FSP1004R FireShield Plus (10-Zone FACP)

The Edwards FSP1004R is a FireShield Plus conventional fire alarm control panel that supports up to 10 Class B initiating-device circuits (IDCs) or 5 Class A IDCs when circuit pairs are converted. The panel provides four Class B notification appliance circuits (NACs) rated at 2.0 A each for a 3.5 A system total and can be reconfigured as two Class A NACs. A 4.25 A power supply delivers system power plus 0.5 A of auxiliary 24 V DC, and both supply and NAC capacity can be expanded to 7.5 A and 7.0 A respectively with the optional F-XTR120 expander transformer. Model Variants: FSP1004G = Gray cabinet, no communicator FSP1004GD = Gray cabinet, factory-installed DACT communicator FSP1004R = Red cabinet, no communicator FSP1004RD = Red cabinet, factory-installed DACT communicator Key Specifications: Type: Conventional FACP Zone Capacity: 10 Class B or 5 Class A IDCs NAC Circuits: 4 Class B or 2 Class A, 2.0 A per circuit, 3.5 A total (7.0 A with F-XTR120) Power: 120 VAC input, 24 V DC 4.25 A supply (expandable to 7.5 A) System Output: 3.5 A total NAC/Aux (7.0 A with transformer) Battery Support: Up to two 24 Ah sealed lead-acid batteries, 18 Ah fit in cabinet Dialer/Communicator: Optional F-DACT communicator (Not Included) Compatible Modules & Accessories: Expander Transformer – F-XTR120 Remote Annunciators: FSRSI, FSRZI-A, FSRZI-SA, FSRA10, FSRA10C Remote Relay Module: FSRRM24 Universal Input Module: FSUIM City-Tie Module – CTM Reverse Polarity Module: RPM Multi-Function Cabinet – MFC-A Compatible Detectors & Devices: Listed for use with Edwards 2M, EC, 6200, 400, 500, and 700 Series detectors and other conventional units may be compatible.
