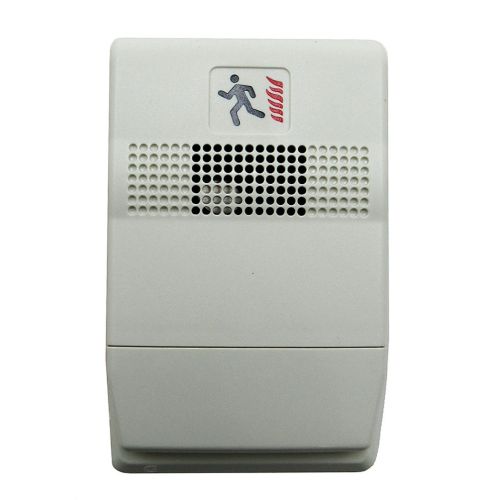

Edwards EST G1-P Steady Horn (White)

NOTE: Equivalent replacement: Edwards EST EG1-P. The Edwards EST G1-P is a compact indoor Genesis Series steady-tone horn for 24 VDC notification appliance circuits, built for low current draw and simple one-gang mounting. It supports coded or non-coded operation and offers a clean horn-only solution where audible notification is required. Key Specifications: Type: Conventional steady-tone horn notification appliance Core Function(s): Audible fire alarm horn, steady tone; 77 dBA average at 10 ft, up to 91 dBA peak Loop/Protocol: 24 VDC NAC, coded or non-coded Power: 20 to 31 VDC filtered or 20 to 27 V FWR; max 13 mA RMS at 24 VDC, about 11 mA at 24 V FWR Notes: Mounts to a standard 1-gang box for wall or ceiling use; not compatible with Genesis Signal Master Compatible Accessories: G1T – White Genesis trim plate G1T-FIRE – White trim plate with FIRE legend System Compatibility: Edwards Genesis Series indoor audible appliances on listed 24 VDC NAC circuits
