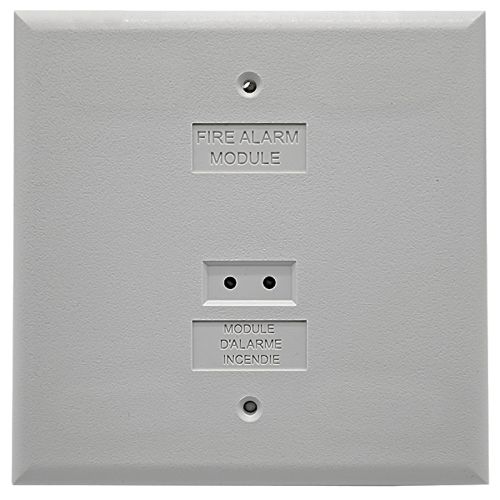

Edwards EST SIGA-CRH High Power Control Relay Module

The Edwards EST SIGA-CRH High Power Control Relay Module is an addressable device designed for interface applications that require a high voltage, high current relay. Two identical sets of relay terminals are provided. Both sets of relay contacts transfer when the module is activated or restored. The state of the output terminals is not supervised. The module requires one address on the signaling line circuit (SLC). Addresses are assigned electronically. There are no address switches. The SIGA-CRH is part of the Signature Series intelligent processing and control platform. It is compatible with EST3, EST3X, and iO Series control panels. Mounts to: — North American double-gang × 2-1/8 in. (54 mm) deep box — North American standard 4 in. square × 2-1/8 in. (54 mm) deep box
