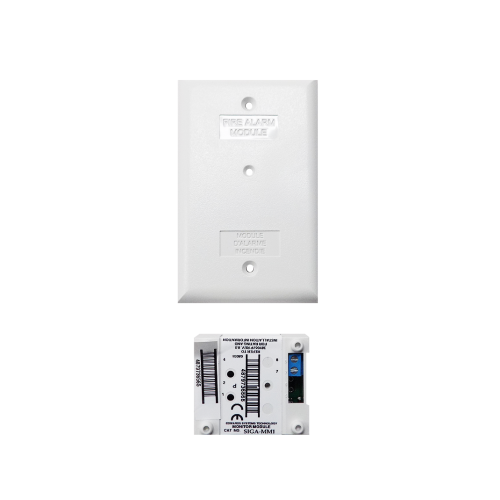

Edwards EST SIGA-MM1 Monitor Module

The Edwards EST SIGA-MM1 is an intelligent addressable monitor module for Signature Series loops, providing one Class B normally-open dry-contact input with electronic addressing, low SLC current, and simple 1-gang mounting. Key Specifications: Type: Intelligent addressable monitor module Core Function(s): Monitors one Class B NO dry contact (non-latching “Active” reporting) Loop/Protocol: Signature SLC Power: 15.2 to 19.95 VDC from SLC; 250 μA standby, 400 μA active Indicators/UI: Green status LED (polled), Red LED (active/alarm) Notes: Uses one address; IDC limits 50 Ω total and 0.1 μF; does not support 2-wire smoke detectors Compatible Modules & Accessories: SIGA-MP1 – Signature module mounting plate, 1-gang footprint SIGA-MP2 – Signature module mounting plate, 1/2 footprint SIGA-MP2L – Signature module mounting plate, 1/2 extended footprint SIGA-MB4 – Bracket for mounting two 1-gang modules in a 2-gang box 27193-11 – Red 1-gang surface box 27193-16 – White 1-gang surface box MFC-A – Multifunction fire cabinet for Signature plates System Compatibility: Works with EST3, EST3X, and iO Series controllers via the Signature Loop Controller
