Edwards EST WG4WF-SVMHC Genesis Speaker Strobe (White)
$235.00

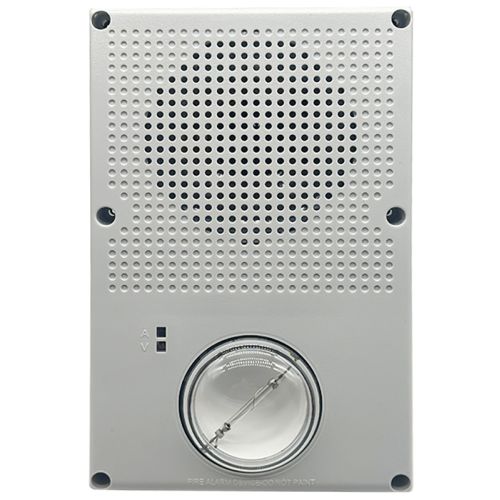

Edwards EST WG4WF-SVMHC is a white Genesis Speaker Strobe marked "FIRE" suitable for wall or ceiling mounting.
Selectable high output 102/123/147/161 cd
Operating voltage:
Speaker — 25 VRMS or 70 VRMS, switch selectable
Strobe — 24 VDC, 24 VFWR nominal
Compatible strobe synchronization sources:
E-NAC, EG1M-RM, EBPS6A, EBPS10A,
E-FSC 3, 5, and 10 zone, E-FSA64, E-FSA250
For surface-mounting in outdoor or wet applications, appliances must be mounted to an Edwards 449 electrical box.
In dry conditions, they are compatible with standard 4-inch by 1½-inch deep electrical boxes.
When using the optional WG4WTS or WG4RTS trim skirt, a 449 or 2-1/8" deep box must be used.
ACCESSORIES:
— WG4WTS Surface Skirt for Genesis WG4 appliance family, white.
— WG4GSKT Replacement Mounting Gasket
— 449 Surface mount box, outdoor rated
