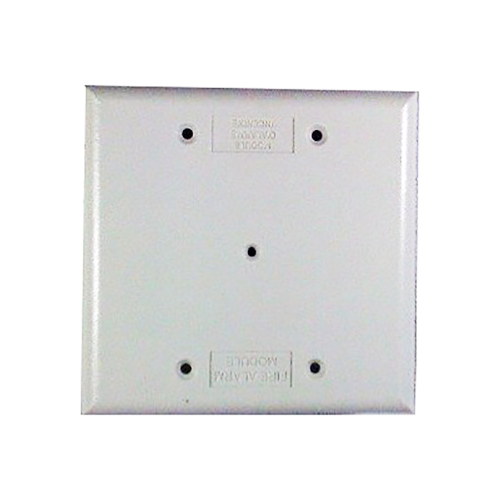

Edwards EST SIGA-CC2 Dual Input Signal Module

The Edwards EST SIGA-CC2 intelligent addressable dual input signal module connects two supervised Class B, or one Class A, risers to a Signature Series loop for 24 Vdc NACs, 25 or 70 VRMS audio evacuation speakers, or firefighter telephone circuits. It uses a single module address for both outputs with factory set Personality Code 7, supervises field wiring for opens and shorts, and mounts on standard 2-gang or 4-inch square boxes using Signature mounting plates. Key Specifications: Type: Intelligent addressable dual input (riser) signal module Core Function(s): Switches two supervised Class B or one Class A NAC, audio, or telephone risers to their 24 Vdc or 25/70 VRMS power sources under panel control Loop/Protocol: Signature SLC (factory-set Personality Code 7 for both circuits) Power: 15.2 to 19.95 VDC from SLC; approx. 223 µA standby, 100 µA active; each output rated 2 A at 24 Vdc, 50 W at 25 V audio, 35 W at 70 V audio Indicators/UI: On-board green status LED (polling) and red LED (alarm or active) Compatible Modules & Accessories: 27193-21 – Red 2-gang surface mount box 27193-26 – White 2-gang surface mount box SIGA-MP1 – Signature mounting plate, 1 footprint SIGA-MP2 – Signature mounting plate, half footprint SIGA-MP2L – Signature mounting plate, extended half footprint MFC-A – Multifunction fire cabinet for Signature modules 235196P – Bi-polar transient protector for NAC, audio, or telephone risers System Compatibility: Compatible with Edwards Signature loop controllers on EST3, EST3X, and iO Series fire alarm control panels.
