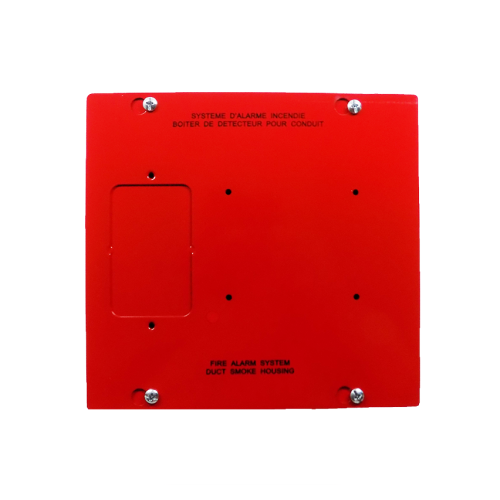

Edwards EST SIGA-DH Duct Detector Housing

The Edwards EST SIGA-DH Duct Detector Housing is specially designed exploit all the capabilities of Signature Series intelligent photoelectric and multisensor smoke detectors. Five one-gang knockouts on the 16 gauge steel housing provide a location for mounting intelligent Signature Series modules. The Edwards EST SIGA-DH Duct Housing comes with a 6 inch (150 mm) exhaust tube. Air sampling tubes are available in lengths from 8 inches (200 mm) to 10 feet (3048 mm) and must be ordered separately. SAMPLING TUBES: — 6261-001 8 inch (200mm) Air Sampling Inlet Tube — 6261-002 24 inch (600mm) Air Sampling Inlet Tube — 6261-003 42 inch (1060mm) Air Sampling Inlet Tube — 6261-006 78 inch (1980mm) Air Sampling Inlet Tube — 6261-010 120 inch (3048mm) Air Sampling Inlet Tube COMPATIBLE DETECTORS and ACCESSORIES: — SIGA-IPHS 4D Multisensor Detector — SIGA-PHS 3D Multisensor Detector — SIGA-PS Photoelectric Detector — SIGA-LED Alarm LED Indicator — SIGA-DTS Duct Test Station — 6263-SG Duct Air Velocity Test Kit
