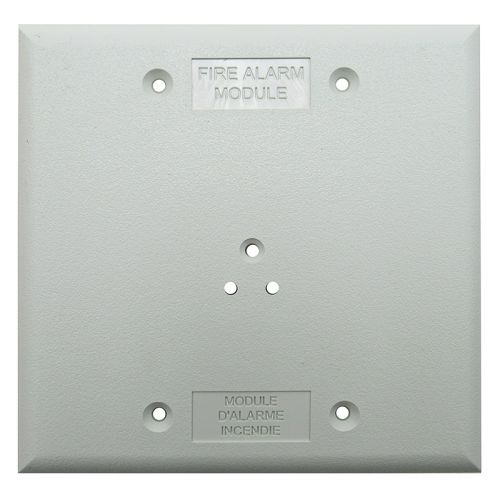

Edwards EST SIGA-RM1 Riser Monitor Module

The Edwards EST SIGA-RM1 riser monitor module for Signature Series loops supervises 70 Vac or 25 Vac audio risers, 12 to 24 Vdc risers, or telephone risers and reports trouble on low voltage. Electronic addressing with automatic mapping and an adjustable trouble delay simplify setup. Fits a standard 2-gang box for clean installs. Key Specifications: Type: Intelligent addressable riser monitor module Core Function(s): Monitors audio or telephone risers and signals trouble when voltage falls below threshold Loop/Protocol: Signature SLC Power: 15.2 to 19.95 Vdc from SLC; 200 μA standby, 200 μA active Indicators/UI: Green status LED; red LED for active/trouble Notes: Adjustable trouble delay 5 to 75 s (15 s default); jumper selects 70 Vac or 25 Vac/24 Vdc/12 Vdc; uses one address Compatible Modules & Accessories: SIGA-MP1 – Module mounting plate, 1 footprint SIGA-MP2 – Module mounting plate, half footprint SIGA-MP2L – Module mounting plate, half extended footprint System Compatibility: Works with Signature loop controllers and panels such as EST3, EST3X, and iO Series.
