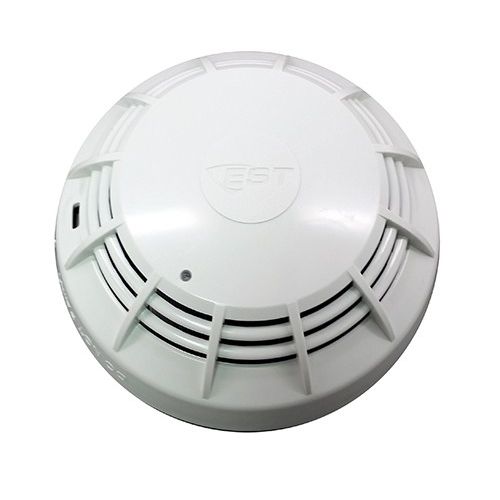

Edwards EST SIGA2-PS Smoke Detector

NOTE: This part is discontinued by the manufacturer. Replace with: SIGA-OSD. The Edwards EST SIGA2-PS is an intelligent addressable photoelectric smoke detector for Signature Series loops. It uses forward-scattering photoelectric sensing with digital filtering to detect smoke quickly while helping reduce nuisance alarms. A field-replaceable smoke chamber, selectable sensitivity including day and night levels, self-diagnostics with environmental compensation, and a green/red status LED support clear, dependable operation. Key Specifications: Type: Intelligent addressable photoelectric smoke detector Core Function(s): Photoelectric smoke detection with nuisance-alarm reduction Loop/Protocol: Signature Series SLC Power: 15.20 to 19.95 VDC Indicators/UI: Bi-color status LED Operating Range: 32 to 120 °F; 0 to 93% RH, non-condensing Notes: Field-replaceable smoke chamber; five sensitivity settings with day/night and pre-alarm options Compatible Bases & Accessories: SIGA-SB – Standard base SIGA-SB4 – 4-inch standard base with trim skirt SIGA-RB – Relay base SIGA-RB4 – 4-inch relay base with trim skirt SIGA-IB – Fault isolator base SIGA-IB4 – 4-inch fault isolator base with trim skirt SIGA-AB4G – Audible sounder base SIGA-AB4GT – Sounder base for fire or fire plus CO tones with SIGA-TCDR SIGA-LED – Remote alarm LED (for SB/SB4 bases) SIGA-TS4 – Trim skirt for 4-inch bases System Compatibility: Signature Series control panels using a Signature loop controller.
