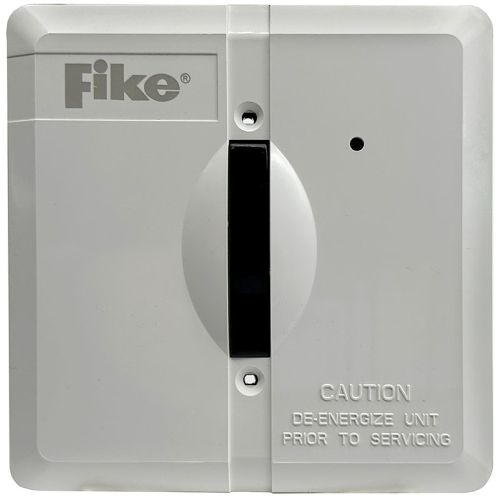

Fike 55-041 Monitor Module, Non-isolator

Fike 55-041 Monitor Module (Non-isolator) provides a single, Class A or B initiating device circuit (IDC) capable of monitoring normally open contact fire alarm and supervisory devices or normally closed supervisory/process devices. In addition to monitoring the connected contacts, the module will monitor the wiring to the device for open circuits via an end of line resistor (Class B only). The module has a multi-color LED that will flash a unique color for instant status indication (Green for normal operation, Red for active input, Yellow for trouble at device). Normal Operating Voltage: 15 to 30 VDC Standby Current: 485µA max. (continuous broadcasts) IDC Voltage: 5.4 VDC max. Mounting — Mounts on 4” square electrical boxes with 2 1/8” minimum depth. For surface mounting, use Fike 20-1347 surface mount box.
