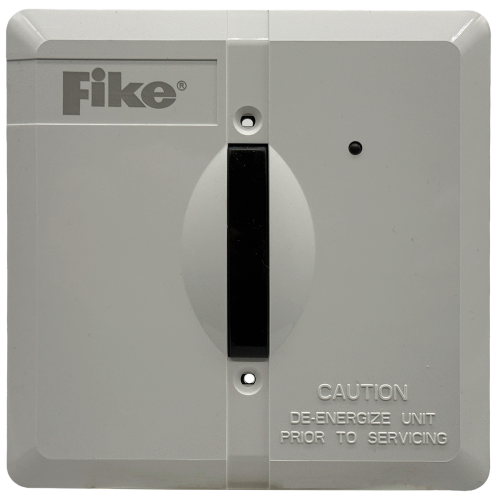

Fike 55-056 Dual Monitor Module, Non-isolator

The Fike 55-056 dual monitor module is a non-isolator addressable input module that provides two independent 2-wire, Class B initiating device circuits from a single device address, letting you monitor two separate normally-open contact inputs for alarm or supervisory points. Each input is supervised for open wiring using a 39kΩ end-of-line resistor, and a panel-controlled multi-color LED indicates module status. Isolator version: 55-061 – Dual monitor module with built-in short-circuit isolation Key Specifications: Type: Intelligent addressable dual monitor module (non-isolator) Core Function(s): Monitors two independent Class B NO contact IDCs from one address with EOL supervision and independent alarm/trouble operation per circuit Loop/Protocol: Fike CyberCat peer-to-peer digital protocol (SLC addressable) Power: 15 to 30 VDC; 600 µA average operating current; 2.72 mA max alarm current Indicators/UI: Panel-controlled multi-color LED status indication Compatible Accessories: 10-2625 – 39kΩ end-of-line resistor (2 included) 13-0192 – Wall cover plate (included) 20-1347– Surface mount box 55-051 – IR tool System Compatibility: Compatible with Fike CyberCat intelligent control panels
