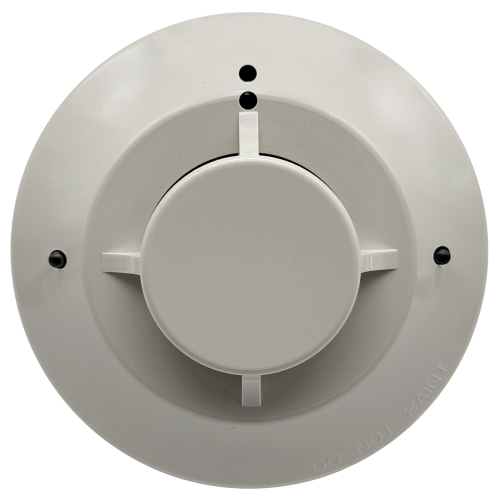

Fike 60-1039 Fixed Temp / ROR Thermal Detector

The Fike 60-1039 intelligent heat detector is a non-isolator fixed temperature and rate-of-rise heat detector for Fike CyberCat and Cheetah Xi addressable systems, with programmable setpoints and a tri-color status LED for clear local indication. It can be programmed for ordinary or intermediate temperature ranges, with rate-of-rise available in the ordinary range. Key Specifications: Type: Intelligent addressable heat detector (non-isolator) Core Function(s): Programmable fixed-temperature heat detection with optional 15°F/min rate-of-rise operation (ordinary range); intermediate range is fixed-temperature only Loop/Protocol: Fike CyberCat peer-to-peer digital protocol (SLC addressable) Power: 15 to 30 VDC; 451 µA max standby @ 24 VDC; 2 mA max alarm @ 24 VDC (LEDs on) Indicators/UI: Tri-color status indicator lights Operating Range: 10% to 93% RH non-condensing; installation temperature -4°F to 100°F for 135–174°F setpoints and -4°F to 150°F for 175–190°F setpoints Compatible Bases & Accessories: 63-1054 – 6-inch flanged mounting base (non-isolator) 63-1055 – 4-inch flangeless mounting base (non-isolator) 63-1063 – Relay base 63-1064 – Sounder base 02-3868 – Remote LED annunciator 20-1085 – Retrofit flange 20-1087 – Detector removal tool 55-051 – IR tool System Compatibility: Compatible with Fike CyberCat and Cheetah Xi intelligent control panels
