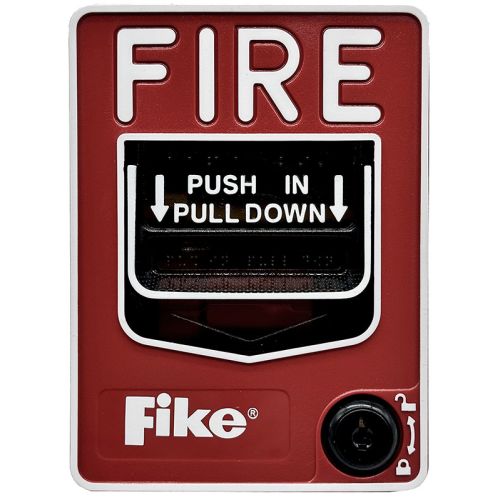

FIKE FIK-PULL-DA Dual Action Intelligent Pull Station

The FIK‐PULL‐DA is a dual‐action pull station requiring two actions to activate the station. Single pole, single‐throw (SPST) normally open (N/O) switch closes upon activation of the pull station Compatible for use with Fike’s FCP Series fire alarm control panels (FACP). — FCP‐75 — FCP‐300 / FCP‐300ECS — FCP‐2100 / FCP‐2100ECS — RFCP‐2100 Can be surface mounted to an SB‐I/O surface back box or semi‐flush mounted on a standard single‐gang, double‐gang, or 4” (10.61 cm) square electrical box with a minimum depth of 2.13” (5.4 cm). An optional trim ring (BG‐TR) is available if the station is being semi‐flush mounted
