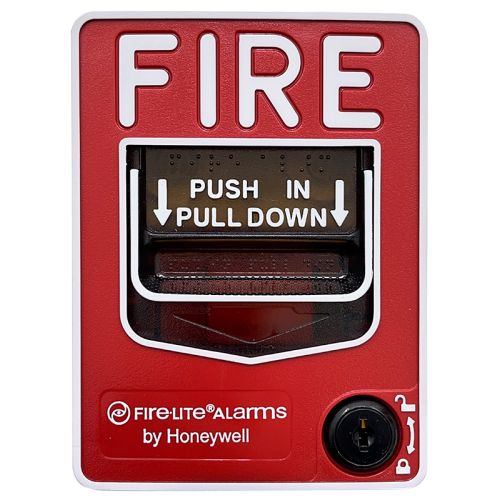

Fire-Lite BG-12LX Addressable Manual Pull Station

The Fire-Lite BG-12LX requires two motions to activate the pull station that includes an addressable interface (mounted inside) for Fire·Lite’s addressable fire alarm control panels (FACPs). The Fire-Lite BG-12LX connects with two wires to one of the control panel SLC loops. Address setting by use of rotary decimal switches. Features key locking. The BG-12LX will mount semi-flush into a single-gang, doublegang, or standard 4" (10.16 cm) square electrical outlet box, or will surface mount to the model SB-10 or SB-I/O surface backbox. If the BG-12LX is being semi-flush mounted, then the optional trim ring (BG12TR) may be used. The BG12TR is usually needed for semi-flush mounting with 4" (10.16 cm) or double-gang boxes (not with single-gang boxes).
