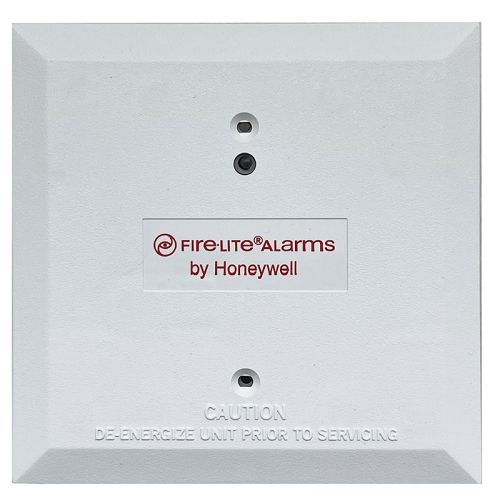

Fire-Lite MMF-302 Interface Module

The MMF-302 Interface Module is intended for use in addressable two-wire systems, where the individual address of each module is selected using the built-in rotary switches. This module allows addressable panels to interface and monitor two-wire conventional smoke detectors. It transmits the status (normal, open, or alarm) of one full zone of conventional detectors back to the control panel. All two-wire detectors being monitored must be UL compatible with this module. The MMF-302 has a panel controlled LED indicator and can be used to replace an M302 module in existing systems. The MMF-302 mounts directly to 4-inch square electrical boxes with a minimum depth of 21⁄8 inches, or to surface mounted electrical box SMB500.
