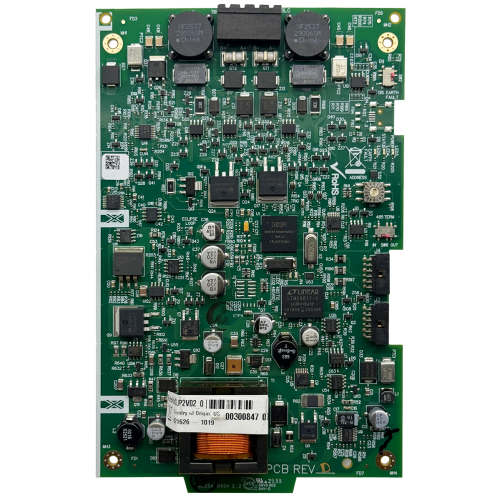

Fire-Lite SLC-3LS SLC Loop Expander

The Fire-Lite SLC-3LS is an SLC loop expander module for Fire-Lite ES-1000X Series fire alarm control panels that adds one additional signaling line circuit for more addressable device capacity. Each card supports up to 318 additional devices, and up to two SLC-3LS modules can be added to a panel for a total of 3 SLC loops and 954 system points. Key Specifications: Type: SLC loop expander module Core Function(s): Adds one additional SLC communication loop to a compatible ES-1000X Series control panel Loop Capacity: Up to 318 additional devices per SLC-3LS card System Capacity: Maximum of two add-on SLC-3LS cards per panel for a total of 3 SLC loops and 954 points Wiring: Supports Class A, Class B, or Class X SLC wiring Circuit Type: All SLC connections are supervised and power-limited Indicators/UI: 16-position SLC address switch, ground fault disable switch, and RS-485 termination switch Configuration Notes: Address setting 0 is not valid; RS-485 termination is enabled on the last loop card installed System Compatibility: Fire-Lite ES-1000X Series fire alarm control panels
