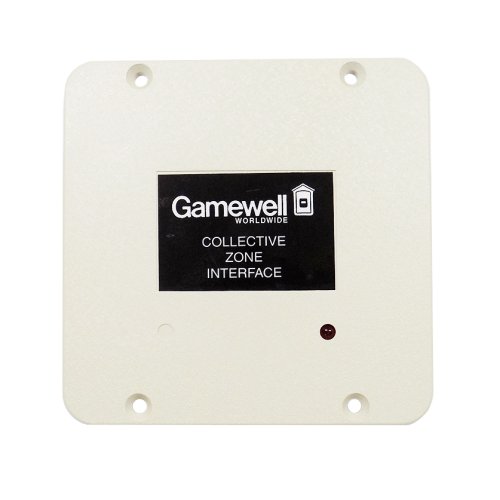

Gamewell FCI 30774-10 Collective Zone Interface

The Gamewell FCI 30774-10 Collective Zone Interface is a high-current Class A surface-mount CZI module for Identifire Network System 2 applications. It provides one initiating circuit for connecting compatible conventional initiating devices to an INS 2 network communication line, with field programming, screw terminals, and a built-in LED for local status indication. Key Specifications: Type: High-current Class A Collective Zone Interface module Core Function(s): Monitors one conventional initiating device zone for alarm, supervisory, common control, or trouble conditions Loop/Protocol: INS 2 network communication line; Style 6 Class A addressable line wiring Zone Circuit: Class A collective zone circuit Power: 24 VDC input from network communication line; 22.2 VDC output power Current: 3.75 mA Class A quiescent current; 25 mA alarm current Indicators/UI: Built-in LED pulses during normal operation, lights continuously in alarm, and does not flash normally during network connection trouble Programming: Field programmable with no DIP switch addressing; uses the 30801 INS 2 programming tool Capacity: High-current version supports up to 25 compatible conventional detectors and bases, or one approved higher-current device Mounting: Surface mount; optional 70839 flush ring available Housing: 4 11/16 inch x 4 11/16 inch x 3 inch deep Compatible Accessories: 30801 - INS 2 programming tool 70839 - Flush ring System Compatibility: Gamewell Identifire Network System 2 systems
