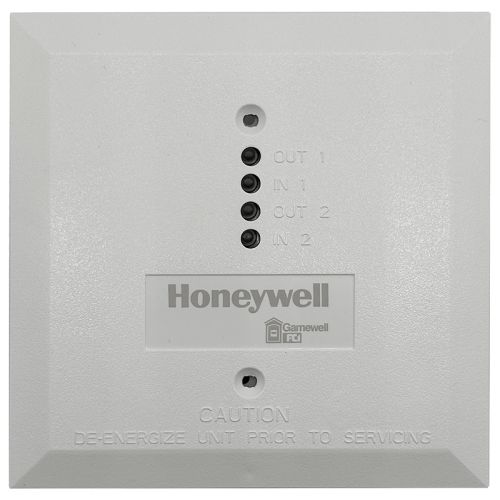

Gamewell FCI AMM-2RIF Addressable Input/Output Module

The Gamewell FCI AMM-2RIF is a Velociti Series addressable input/output module for Gamewell-FCI addressable fire alarm control panels. It combines two monitor inputs and two Form C relay outputs in one space-saving module, making it useful for applications such as smoke/fire dampers, HVAC fans, security doors, and dedicated smoke control. Key Specifications: Type: Addressable input/output module Core Function(s): Provides two supervised monitor inputs and two relay outputs in one module Loop/Protocol: Gamewell-FCI SLC; Velociti Series communication Power: 0.00130A supervisory current; 0.024A alarm current Indicators/UI: Dedicated bi-color LEDs for each input and output; LEDs flash when addressed and light steady in alarm Circuit Configuration: Two Class B initiating device circuits and two Form C relay contact outputs Addressing: Rotary decimal switches, 01 to 159 Address Control: DIP switch allows one input and one output to be manually disabled IDC Ratings: 47K ohm EOL resistor Relay Ratings: 3A at 30 VDC resistive non-coded; 2A at 30 VDC resistive coded; 2A at 25 VAC PF 0.35; 0.9A at 125 VDC resistive non-coded; 0.3A at 125 VAC PF 0.35 Mounting: Mounts to a 4-inch square electrical box, compatible surface-mount box, or compatible duct detector housing Compatible Accessories: SMB500 - Optional surface-mount backbox DNRW - Compatible duct detector housing System Compatibility: Compatible with Gamewell-FCI addressable fire alarm control panels that support Velociti Series SLC devices, including E3 Series systems.
