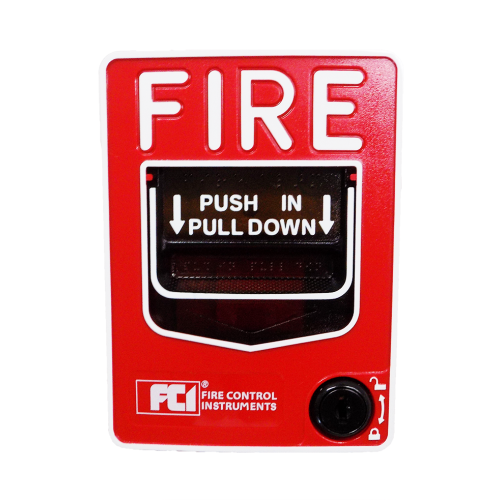

Gamewell FCI MS-7A Addressable Pull Station

NOTE: This part is discontinued by the manufacturer. Replace with: MS-7AF. The Gamewell FCI MS-7A is an addressable double-action manual fire alarm pull station for Gamewell-FCI analog addressable SLC applications. It features a Lexan body, screw terminals, ADA-compliant 5 lb maximum pull force, and a key lock/reset while registering its assigned address at the fire alarm control panel when activated. Key Specifications: Type: Addressable double-action manual pull station Core Function(s): Provides manual fire alarm activation with addressable reporting to the connected FACP Loop/Protocol: Gamewell-FCI analog addressable SLC Power: Powered by the connected signaling line circuit Indicators/UI: Operating instructions and Braille text engraved in the handle; LED status indication on the station door Reset Method: Key lock/reset keyed alike with Gamewell-FCI control panels and pull stations Connections: Screw terminals Contact Rating: 0.25 A at 30 VAC/VDC resistive Compatible Accessories: SB-10 - Surface backbox BG12TR - Plastic trim ring for semi-flush mounting System Compatibility: Gamewell-FCI analog addressable fire alarm control panels
