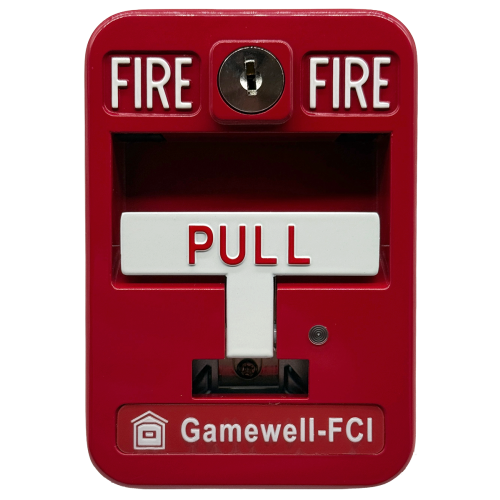

Gamewell FCI MS-95 Addressable Manual Pull Station New Style

The Gamewell FCI MS-95 is a non-coded, single-action analog addressable manual pull station for compatible Gamewell-FCI addressable fire alarm control panels. It uses a die-cast aluminum housing, rugged toggle switch design, key-lock reset, visible status LED, and priority interrupt reporting for fast alarm communication to the panel. Key Specifications: Type: Analog addressable single-action manual fire alarm station Core Function(s): Provides manual fire alarm activation with individual addressable reporting for normal standby, alarm, and trouble conditions Loop/Protocol: Gamewell-FCI analog addressable SLC Power: 24 VDC; 0.0008A standby current; 0.0015A alarm current Indicators/UI: Visible status LED; recessed pull lever with white gloss target background Reset Method: Key-lock reset lowers the front cover and resets the internal toggle switch Circuit Configuration: One addressable manual initiation point connected directly to the analog addressable circuit by two wires Addressing: Field programmable using an onboard DIP switch Priority Function: Priority interrupt reports station condition quickly to the connected FACP Material: Die-cast aluminum with fire alarm red smooth gloss enamel finish Operation: Single-action pull station with recessed lever to help reduce accidental operation Mounting: Surface or semi-flush installation ADA Compliance: Meets 5-lb maximum pull force requirement System Compatibility: Compatible with Gamewell-FCI 600 Series, IdentiFlex 602, E3 Series, ILI95-E3 Series, S3 Series, and SLC95-PM addressable fire alarm control panels.
