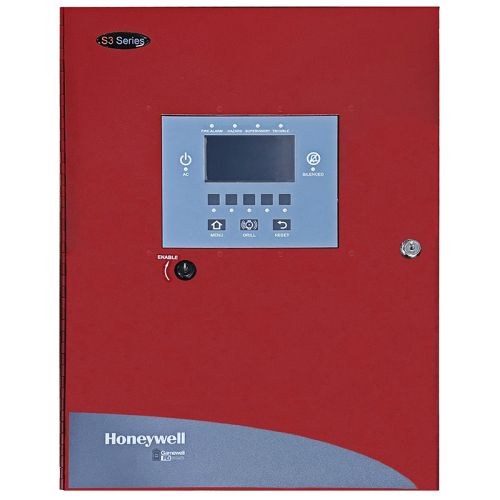

Gamewell FCI SLP-RED S3 Series Control Panel (Intelligent FACP)

The Gamewell FCI SLP-RED is an S3 Series Smart Loop addressable FACP in Black enclosure with 7A power supply & LCD-SLP display. Red Cabinet The SLP provides either one or two SLC loops in Class A or B configuration that supports either of the following protocols: • Up to 318 devices per loop using the System Sensor protocol. If you add a second loop module, it increases the maximum device count to 636 devices. • Up to 126 devices per loop using the Apollo protocol. If you add a second loop module, it increases the maximum device count to 252 devices. Four Class B or two Class A NACs can be wired and synchronized using the System Sensor, Cooper-Wheelock, or Gentex strobes. To retrofit the SLP on the existing audible/ visual appliances, the on-board Electronic EOL (EEOL) automatically adjusts to the EOL resistor in the field. NETWORKING Supports either of the following types of networks: • Up to 64 nodes using the 7100 Series panel. • Up to 122 nodes using the S3 Series or E3 Series panels. Use either twisted-pair wire or fiber-optic to network panels at a high-speed 625K baud ARCNET network bus.
