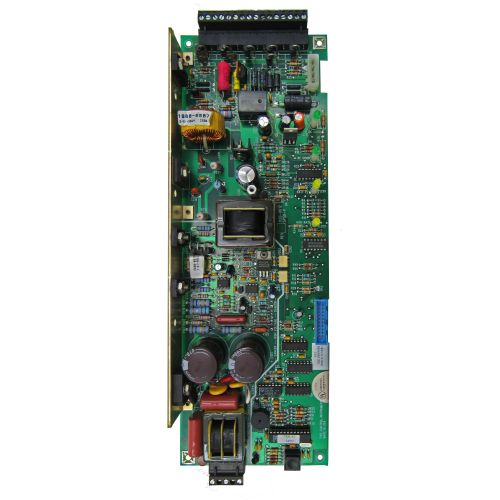

Gamewell FCI 7200 SPSU Switching Power Supply Unit, Old Style

The Gamewell FCI SPSU Switching Power Supply Unit (Old Style) is a transformerless, six (6) ampere supply (four or five amperes for system operation and one or two amperes to maintain the system batteries at full charge) which contains system power fuses and a dual-rate battery charger, capable of charging sealed lead-acid/leadcalcium batteries.

The Gamewell FCI SPSU / SPSU-V is intended for use with the 7200 Series FACPs.

Old Style Boards feature:
— Only 1 LED – Green A/C Power Light
—120 VAC on the left side towards the bottom

See also New Style Boards:
— 1 Green A/C Power Light
— 1 Green DC Power Light
— 1 Yellow Battery Light
— 1 Yellow Highrate Light
— 120 VAC on the bottom left corner

p/n 1100-0367
