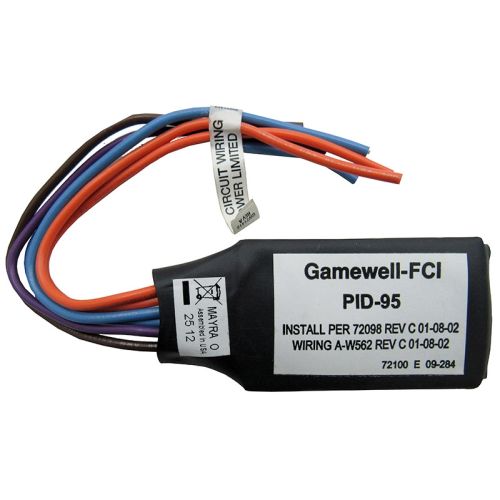

Gamewell FCI PID-95 Point Identification Device

The Gamewell FCI PID-95 is an addressable point identification device for 600 Series and ILI95-E3 Series analog addressable fire alarm control panels. It interfaces one non-powered, normally open dry-contact device to the panel SLC, helping identify remote monitor points while reducing field wiring back to the main control panel. Key Specifications: Type: Addressable point identification device Core Function(s): Monitors one normally open dry-contact device such as a waterflow switch, manual station, or similar contact-type device Loop/Protocol: Gamewell-FCI analog addressable SLC Power: Powered by the SLC loop; 0.0005A to 0.0008A standby current; 0.0015A alarm current Indicators/UI: LED for local alarm annunciation Circuit Configuration: One supervised Style B circuit Addressing: Field programmable using an onboard DIP switch Priority Function: DIP switch position 8 supports priority interrupt configuration Contact Circuit: Monitors non-powered, normally open dry-contact devices Mounting: Mounts in a standard 4-inch square electrical backbox with a blank cover plate System Compatibility: Compatible with Gamewell-FCI 600 Series and ILI95-E3 Series analog addressable fire alarm control panels.
