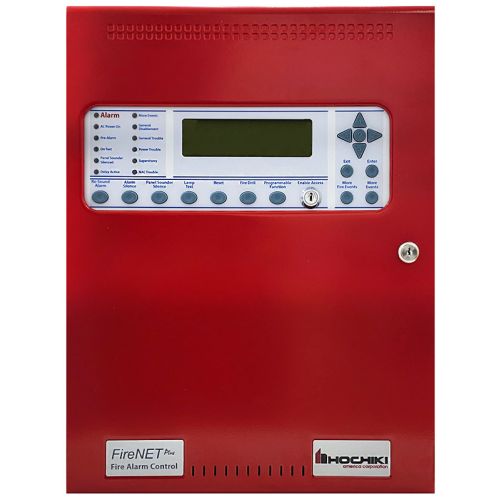

Hochiki FNP-1127US0ERS-120 FireNET Plus 1127 (Intelligent FACP)

The Hochiki FireNET Plus 1127 series control panel is an analog addressable fire alarm panel with build options containing 1 or 2 SLC loops, a Digital Alarm Communicator/ Transmitter (DACT), and an RS-485 bus for network communication. Each SLC loop supports 127 devices of any combination (sensors or modules), and 127 analog sounder bases, for a possible total of 254 points per loop. Primary AC — 120VAC @ 2.1 Amps 50/60hz or 220VAC @ 1.1Amps 50/60hz Output DC — 24VDC @ 5.25 Amps NOTE: This model FACP does not contain a Digital Alarm Communicator/ Transmitter (DACT). See also equivalent product with DACT. EXPANSION CARDS: — FNP-1127-SLC SLC Single Loop Expansion Card. The FNP-1127-SLC increases the loop capacity of the panel from 1 loop to 2 loops, doubling the loop capacity from 254 analog addressable points to 508. — FN-4127-NIC Network Interface Card. The FN-4127-NIC Network Interface Card allows for the expansion of up to 64 nodes (combination of FACPs or annuciators) on a single FireNET network wide system. — FN-4127-IO 16 Channel Input/Output Board. The FN-4127-IO is a 16 channel Input/Output board that provides powerful input/output expansion & addition to the FireNET system allowing up to thirty two I/O boards to be connected to each FireNET panel within the FireNET network. ANNUNCIATOR: — FN-LCD-S Serial LCD Annunciator — FNP-LED Graphix Display SLC LOOP DEVICES: — ALG-V, ALK-V Analog Addressable Photoelectric Sensor — AIE-EA Analog Addressable Ionization Sensor — ATG-EA Analog Addressable Heat Sensor — NSA-6 Six inch Sensor Base — NSA-4 Four inch Sensor Base — ASB Analog Sounder Base — DH-98A, DH-98AR Analog Addressable Duct Detector Unit (DH-98AR has relays) — MS-RA, MS-RA/R,MS-KA/R Remote Test Station for DH98AR — FRCME-M Contact Monitoring Module (mini w/terminal blocks) — FRCME-P Contact Monitoring Module (mini w/pigtail leads) — FRCME-4 Contact Monitoring Module (with faceplate/indicating LED) — FRCMA, FRCMA-I Class A Contact Monitoring Module (FRCMA-I has Built-in SCI) — DIMM Dual Input Monitor Module (with faceplate/indicating LED) — CZM Conventional Zone Module — R2M Dual Relay Module — R2ML/H Series Dual Relay Module (R2ML-I & R2MH-I has Built-in SCI) — SOM Supervised Output Module — SOM-A, SOM-AI Class A Supervised Output Module (SOM-AI has Built-in SCI) — SOM-R Supervised Output Module for Releasing Pre-action System — SCI Short Circuit Isolator Module — AMS Series Addressable Manual Pull Station ACCESSORIES: — TCH-B100 Hand Held Programmer (portable device addresser) — FN-ACC Battery/Accessory Enclosure (houses up to 33AH size batteries) — FNP-ETR Enclosure Trim Ring for Panel Flush Mount
