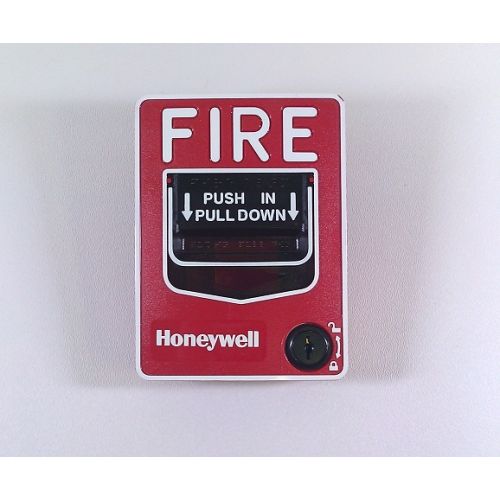

Honeywell S464G1007 Addressable Manual Pull Station

The Honeywell S464G1007 Addressable Pull Station is a dual-action pull station that includes anaddressable interface for use with Honeywell’s compatible Intelligent Fire Alarm Control Panels: — Up to 99 S464G1007 stations per loop on CLIP protocol loops. — Up to 159 S464G1007 stations per loop on FlashScan protocol loops. Dual-color LED blinks green to indicate normal on Flash-Scan systems. Features key lock. The S464G1007 will mount semi-flush into a single-gang, double-gang, or standard 4" (10.16 cm) square electrical outletbox, or will surface mount to the model SB-10 or SB-I/O surface backbox. If the S464G1007 is being semi-flush mounted,then the optional trim ring (BG12TR) may be used. TheBG12TR is usually needed for semi-flush mounting with 4"(10.16 cm) or double-gang boxes (not with single-gang boxes).
