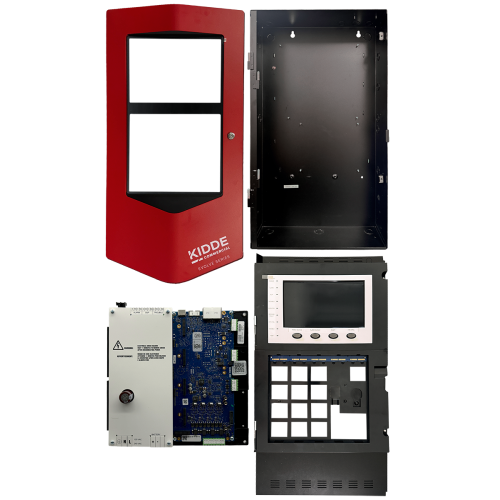

Kidde EVOLVE-ML-R (Evolve Series FACP, Red Door)

The Kidde EVOLVE-ML-R is an intelligent addressable fire alarm control panel with one built-in 250-point SLC loop, four onboard NACs, a red door, and built-in Ethernet connectivity. It supports electronic addressing, automatic device mapping, a 10 inch touchscreen interface, and expansion up to 1,000 addressable points with Evolve loop controller cards. Key Specifications: Type: Intelligent addressable FACP Device Capacity: 250 points on the built-in loop; expandable to 1,000 total points with loop expansion cards Protocol: Evolve intelligent SLC SLC Capacity: One built-in Class A or Class B loop with 125 detector addresses and 125 module addresses NAC Circuits: Four Class B or four Class A NACs with KC-CLA1 NAC Output: 24 VDC filtered regulated; 8.0 A total; 2.5 A max per circuit Power: 120/240 VAC, 50/60 Hz; 10 A switching power supply with Voltage Boost Auxiliary Power: Two 1.0 A auxiliary outputs, configurable as resettable or non-resettable Battery Support: 24 VDC sealed lead-acid batteries; up to 65 Ah charge capacity Indicators/UI: 10 inch LCD touchscreen with six programmable virtual switches Relays: Alarm, supervisory, and trouble relays rated 30 VDC at 1.0 A Communicator: Built-in 10/100 Base-T Ethernet IP communicator; optional SA-DACT telephone dialer Compatible Modules & Accessories: K-RLCD-2 - LCD remote annunciator K-RLED24-2 - LED remote annunciator K-RLED24R-2 - Red LED remote annunciator EVOLVE-SLC-250 - Single-loop 250-point SLC expansion card EVOLVE-SLC-500 - Dual-loop 500-point SLC expansion card RZI16-2 - Remote zone interface module with 16 conventional IDCs and two NACs KC-CLA1 - NAC Class A conversion module SA-DACT - Telephone dialer GSA-REL - Releasing module KC-PTK2 - Panel trim kit BC-1R - Red battery cabinet System Compatibility: Kidde Commercial Evolve Series systems, K-R-Series remote annunciators, Evolve SLC expansion cards, RZI16-2 conventional zone modules, GSA addressable devices, and compatible Genesis notification appliances.
