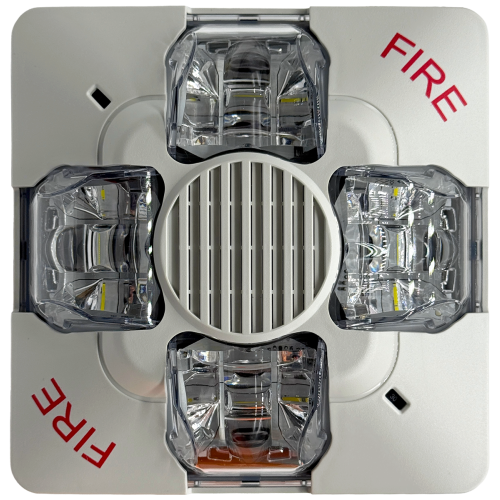

Kidde EWGSVWF (Outdoor Speaker-Strobe, White FIRE)

The Kidde EWGSVWF is an outdoor-rated Genesis LED speaker-strobe notification appliance with a white housing and FIRE marking. It combines selectable 25 Vrms or 70 Vrms speaker operation with a field-selectable 15 or 30 cd LED strobe for wet-location, wall or ceiling fire alarm applications. Key Specifications: Type: Outdoor speaker-strobe notification appliance Core Function(s): Provides voice evacuation speaker output and visual strobe notification Speaker Output: Selectable 25 Vrms or 70 Vrms operation with 1/4 W, 1/2 W, 1 W, and 2 W taps Strobe Output: Field-selectable 15 or 30 cd LED strobe Power: Strobe operates from 16 to 33 VDC; speaker operates from the connected 25 Vrms or 70 Vrms audio circuit Indicators/UI: Field-selectable light and sound settings with visible setting windows Outdoor Rating: NEMA 4X / IP66 listed for rated surface or flush applications; device-only IP67 compliant Mounting: Wall or ceiling mount for indoor or outdoor wet-location applications Color/Marking: White housing with FIRE marking Compatible Accessories: EWGWMA - White adapter plate 449 - Gray outdoor-rated surface-mount box System Compatibility: Compatible with 25 Vrms or 70 Vrms fire alarm audio circuits and Genesis LED synchronized strobe NAC applications, including FX, VM, VS, and Evolve Series booster power supply applications.
