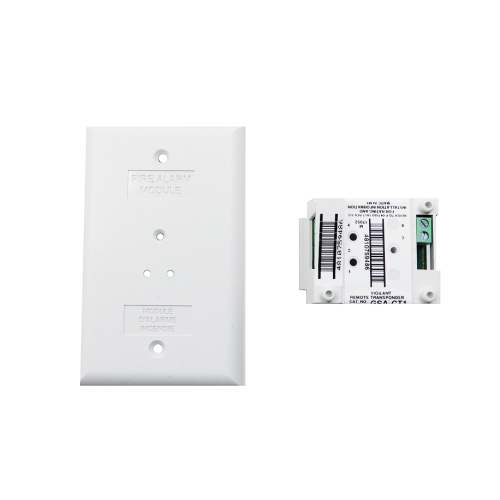

Kidde GSA-CT1 Vigilant Single Input Module

Kidde GSA-CT1 Vigilant Single Input Module is an intelligent analog addressable device used to connect one or two Class B normally-open Alarm, Supervisory, or Monitor type dry contact Initiating Device Circuits (IDC). The GSA-CT1 is intended for use with the Signature Loop Controller only. The actual function of these modules is determined by the “personality code” selected by the installer. This code is downloaded to the module from the Signature loop controller during system configuration. Mounts to North American 2½ inch (64 mm) deep onegang boxes and 1½ inch (38 mm) deep 4 inch square boxes with one-gang covers and GSAMP mounting plates.
