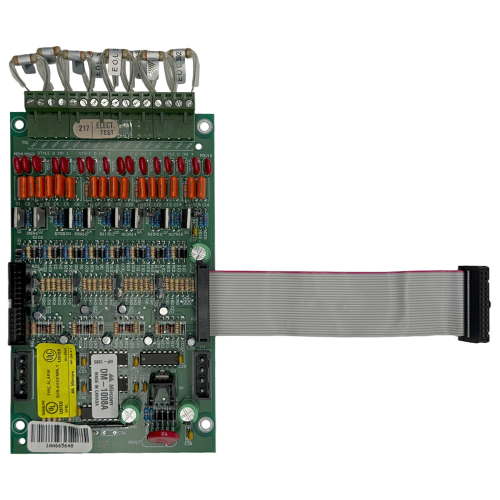

Mircom DM-1008A 8-Zone Initiating Circuit Module

The Mircom DM-1008A initiating circuit module expands compatible Mircom conventional panels by adding up to eight supervised initiating zones that can be set up for Alarm, Supervisory, Waterflow, or Trouble functions. It supports both powered and non-powered initiating devices, and includes per-zone LED annunciation plus slide-in labeling for fast, at-a-glance identification. Key Specifications: Type: 8 initiating circuit module (IDC expansion) Core Function(s): Adds up to 8 Class B (Style B) or 4 Class A (Style D) initiating circuits; each circuit configurable as Alarm, Supervisory, Waterflow, or Trouble Loop/Protocol: FA-1000 / FX-2000 Series conventional zone expansion (IDC) Power: 22 VDC output; 80 mA standby; 465 mA max alarm (all 8 zones active) Indicators/UI: Bi-color Alarm/Supervisory LED and Trouble LED per zone; slide-in zone labels; removable terminal blocks for wiring/service Compatible Devices: Supports powered and non-powered initiating devices such as smoke detectors, heat detectors, pull stations, waterflow devices, and tamper switches System Compatibility: FA-1000 Series and FX-2000 Series Fire Alarm Control Panels
