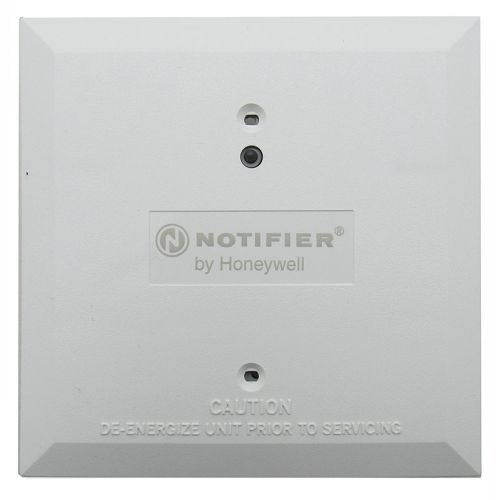

Notifier FCM-1 Addressable Control Module

The Notifier FCM-1 is an intelligent addressable supervised control module for Notifier SLC loops, designed to switch and supervise a notification appliance circuit using an external regulated 24 VDC supply or to switch high-level audio up to 70.7 Vrms. It supports direct-dial addressing via rotary switches and provides clear status reporting back to the panel for NORMAL, OPEN, and SHORT conditions, with a built-in LED for communication and activation indication. Key Specifications: Type: Intelligent addressable supervised control module (NAC/audio control) Core Function(s): Switches external NAC power or audio to connected loads and supervises the field wiring, reporting status to the panel Loop/Protocol: Notifier SLC; FlashScan (01–159) and CLIP compatibility (01–99) Power: 15 to 32 VDC from SLC; 6.5 mA max (LED on); approx. 350–375 µA average polling current Indicators/UI: Integral LED blinks green on SLC communication and latches steady red when activated; rotary address switches Compatible Accessories: SMB500 – Optional surface-mount backbox CB500 – Control module barrier for separating power-limited and non-power-limited wiring in the same box A2143-20 – Capacitor required for Class A speaker operation (when used for audio switching) System Compatibility: Compatible with Notifier intelligent fire alarm control panels that support FlashScan (and CLIP mode where enabled) on the SLC loop.
