Notifier NFC-50/100 First Command Emergency Communication System

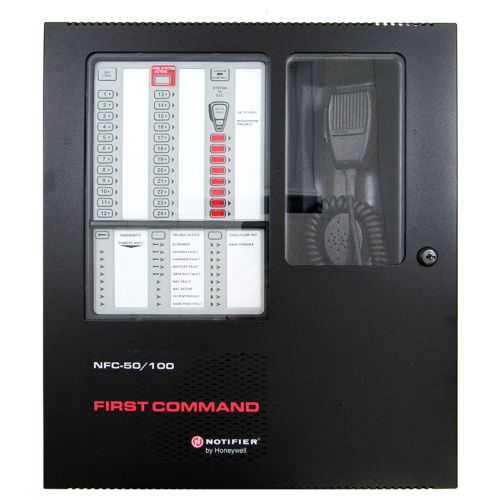

The Notifier NFC-50/100 is an emergency voice-evacuation and mass-notification control panel in a surface-mount steel enclosure. It includes a 50-watt, 25 V RMS amplifier that drives one supervised Style Y/Z speaker circuit and stores fourteen field-programmable digital messages of up to 60 s each, complete with selectable alert tones. Standard features are an integral supervised microphone, eight command inputs, a 2.0 A synchronized NAC output, three Form C status relays, 500 mA of auxiliary 24 V power, and a USB/web programming interface. System capacity expands to 100 W and eight speaker zones with optional amplifier and circuit-expander modules, while the on-board charger supports two 18 Ah batteries (26 Ah charging capacity) for backup operation. Key Specifications: Type: Emergency voice-evacuation & mass-notification control panel Built-in Audio Power: 50 W at 25 V RMS (single speaker circuit) Expandable Audio Power: 100 W with second 50 W amplifier or 70 V option Speaker Circuits: 1 Style Y/Z supervised; expandable to 8 with NFC-CE6 Digital Messages: 14 recordable, up to 60 s each, with alert tones Command Inputs: 8 (2 NAC reverse-polarity/contact selectable, 6 dry contact) NAC Output: 24 V DC, 2.0 A, sync for System Sensor, Wheelock, Gentex devices Auxiliary Power: 24 V DC, 500 mA (special application) Status Relays: AC loss, system trouble, MNS active (Form C) Primary Power: 120 VAC 60 Hz 3.5 A (240 VAC 50 Hz 2.0 A for “E” model) Battery Support: Charges up to 26 Ah; cabinet fits two 18 Ah batteries Compatible Modules & Accessories: NFC-CE6 – Six-zone speaker expander NFC-BDA-25V– 25 V 50 W auxiliary/backup amplifier NFC-BDA-70V – 70 V 50 W auxiliary/backup amplifier NFC-XRM-70V – 70 V transformer module NFC-LOC – Local operator console NFC-RPU – Remote page unit NFC-RM – Remote microphone station NFC-50DA – 50 W distributed audio amplifier NFC-125DA – 125 W distributed audio amplifier NFC-50/100DA – 50/100 W distributed amplifier with backup NFC-FFT – Fire-fighter telephone system NFC-RTZM – Remote telephone-zone module SEISKIT-COMMENC– Seismic mounting kit and battery bracket TR-CE-B – Semi-flush trim ring CHG-75 – External battery charger (25–75 Ah) CHG-120 – External battery charger (25–120 Ah)
