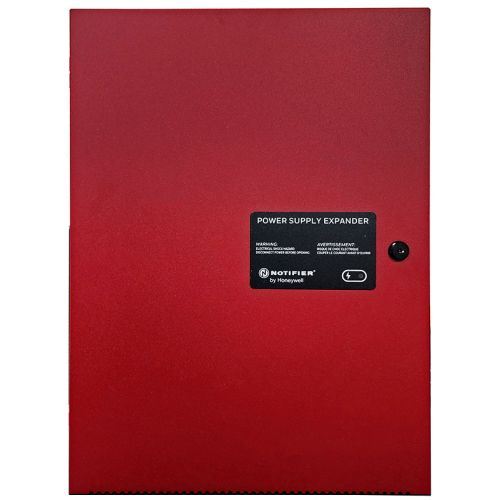

Notifier PSE-6R Power Supply Expander

The Notifier PSE-6R Power Supply Expander is a 6.0 A, 120 VAC Remote Charger / Power Supply in a red metal enclosure. R = Red Cabinet The Notifier PSE-6 Power Supply Expander provides ADA compatible strobe synchronization and a filtered 24 VDC output that can be configured to drive five Class B NACs (Notification Appliance Circuits). NAC circuits can be configured for Class A wiring with the optional ZNAC-PS Class A converter module. NAC output circuits may be configured as 24 VDC resettable or non-resettable power outputs, or Class D door holder outputs. The input circuits, which control the power supply operation, are triggered by the reverse polarity of a NAC or by a 12 VDC or 24 VDC power source. The PSE-6 power supply is compatible with 12 VDC and 24 VDC control panels.
