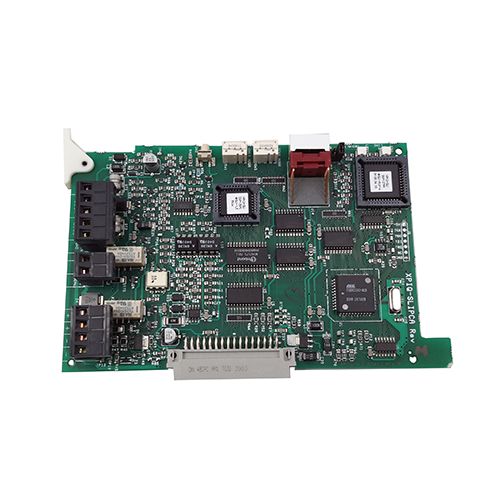

Notifier XPIQ-SLI Signaling Line Interface
$350.00
The Notifier XPIQ-SLI Signaling Line Interface is intended for use with the XPIQ Quad Intelligent Audio Transponder.
FEATURES / SPECS:
— All screw terminal blocks accept wire up to 12 AWG.
— Compatible with Notifier CLIP and FlashScan protocols.
— Average SLC current: 1.0 mA.
— SLC isolation: 500 VDC, limited by transient protection components to 40 VDC.
— Contact rating, local Alarm relay TB11: 2.0 A @ 32 VDC (resistive).
— Maximum length of local SLC loop wiring: 2,000 ft. (600 m).
— Maximum number of detectors/modules on the local SLC loop output: 64.
— Maximum resistance of the local SLC (from any device to the FACP): 50 ohms
