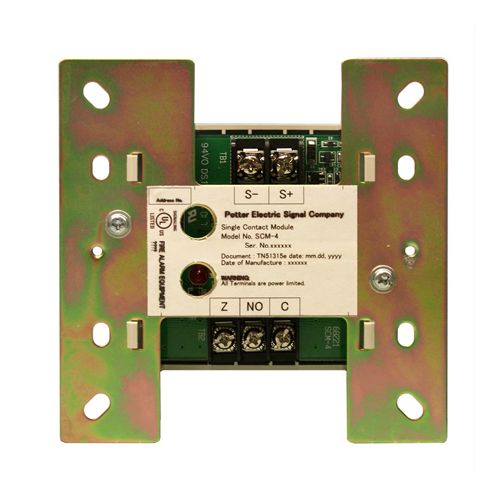

Potter SCM-4 Addressable Single Contact Module
$95.00
The Potter SCM-4 Addressable Single Contact Module is used to supervise a Class B circuit of normally open, dry contact input devices. The SCM-4 module uses one (1) address on an SLC loop. The SCM-4 module includes one red LED to indicate the module status.
Compatible for use with with Potter’s PFC-6000 series and PFC8500 addressable fire alarm control panels.
FEATURES and SPECS
— One Class B (Style B) contact monitoring input
— Powered directly from 2 wire SLC Loop
— SLC Class A (Style 6,7) & Class B (Style4)
NOTE: This addressable module does not support 2-wire smoke
detectors
Mounts on a standard 4” or double gang box.
