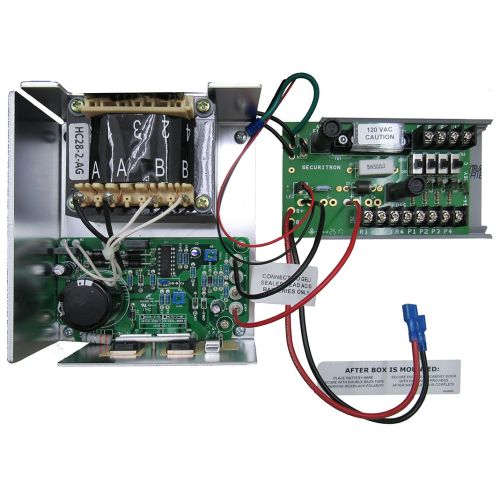

Securitron BPS-24-2 Linear Power Supply - Board and Transformer Only

Securitron BPS-24-2 Linear Power Supply - Board and Transformer Only Voltage Adjustment: 12V/24V selector switch Input Voltage: 120VAC - BPS-12/24-1 Output Current: 1 Amp FEATURES and SPECS: — Dual output, field selectable 12 or 24VDC via clearly marked toggle switch — Supplies 1 full AMP continuous current output, even while charging back-up batteries — SPDT AC monitoring output allows for remote monitoring of the power supply's 110VAC input — Separate voltage inputs for load and battery allow the batteries to charge at a higher output while the load remains at exactly 12 or 24VDC — LED indication (AC and DC) showing power supply status — UL Listed low current fire alarm disconnect requires only a minimum size fire alarm relay and wire gauge — Polyswitch 2A breaker allows for large short duration inrush current if batteries are installed (approximately 20A for 1 second) — Line voltage and DC fuses — Sealed lead acid-gel battery charging capability (battery not included)
