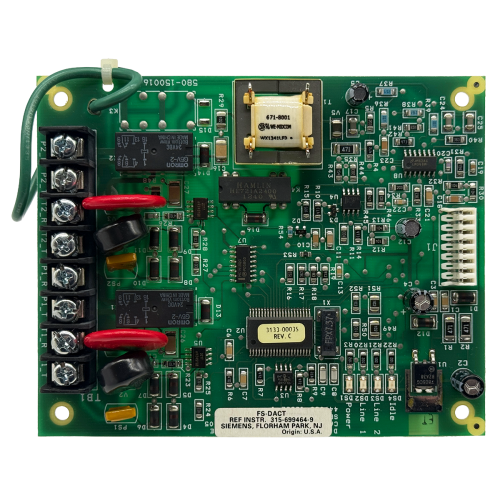

Siemens FS-DACT Digital Alarm Communicator Transmitter

The Siemens FS-DACT is a digital alarm communicator transmitter module for the Siemens FS-250 fire alarm system, adding dual telephone line reporting for central or remote station monitoring. It supports up to four monitoring accounts, mounts directly on the main board, and reports alarm, supervisory, trouble, reset, and restore events in multiple common communication formats. Key Specifications: Type: Digital alarm communicator transmitter module Core Function(s): Adds telephone line communication for central station or remote station event reporting Power: 24 VDC nominal, 0.054 A max Phone Line Capacity: Two supervised telephone lines Monitoring Accounts: Up to four accounts Communication Formats: SIA DCS 8, SIA DCS 20, Ademco Contact ID, 3/1 1400 Hz, 3/1 2300 Hz, 4/2 1400 Hz, and 4/2 2300 Hz Mounting: Direct main board mount inside the panel enclosure Connections: RJ31X telephone jack interface System Compatibility: Siemens FS-250 fire alarm system Alternate Part Numbers: 500-699484
