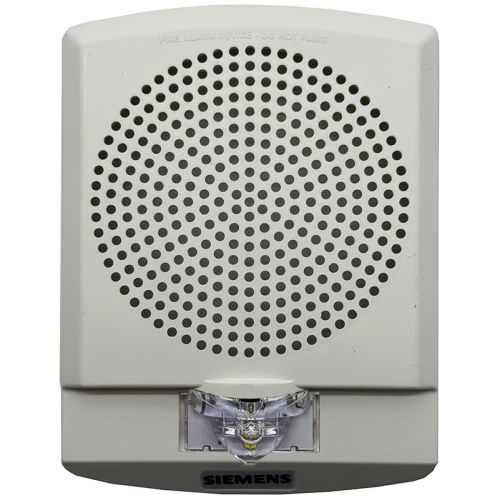

Siemens SLSPSWW-F Speaker

The Siemens SLSPSWW-F is a high-fidelity indoor wall speaker-strobe in white with a clear lens and “FIRE” faceplate. It delivers clear voice evacuation and tone signaling (300–8000 Hz), operates on 25/70 VRMS with field-selectable power taps (1/8–2 W), and adds an LED strobe with selectable candela (15, 30, 75, 110 cd). The SL series features a low-profile, screw-less design with fast in/out wiring, and it’s compatible with Siemens audio/voice systems and synchronization via Siemens addressable panels, PAD-series NAC extenders, and DSC dual-sync modules. P/N S54329-F43-A1 Key Specifications: Type: High-fidelity speaker-strobe, indoor, wall-mount (white “FIRE” faceplate, clear lens) Frequency Response: 300–8000 Hz for intelligible voice and tones Power Taps (25/70 VRMS): 1/8, 1/4, 1/2, 1, 2 W (field-selectable; no tools required) Speaker Output (at 10 ft): 75 / 79 / 82 / 85 / 87 dBA (corresponding to the above taps) Strobe Candela (field-selectable): 15, 30, 75, 110 cd; 1 flash per second Operating Temp/Humidity: 32°F to 122°F (0°C to 50°C); up to 93% RH; indoor use Dimensions: 6.1″ H × 4.56″ W × 1.4″ D Wiring: In/Out terminals accept #12–#18 AWG for daisy-chain installation Design Features: Low current draw platform, modern low-profile look, no visible mounting screws Compatible Panels & Infrastructure: Works with Siemens addressable FACPs and audio/voice evacuation systems; supports Siemens synchronization via addressable panels, PAD-series NAC extenders, and DSC dual-sync modules. Mounting Option (Color-Matched): LFSBB-W – White surface backbox
