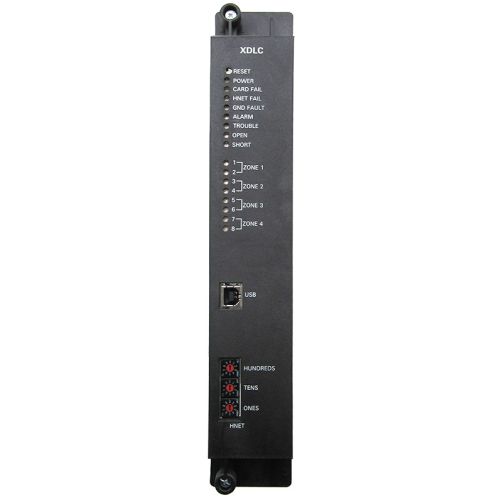

Siemens XDLC Field Device Loop Card

The Siemens XDLC Field Device Loop Card is the interface for connection of Desigo Fire Safety Modular/Cerberus PRO Modular smoke detectors, MultiCriteria detectors including Carbon Monoxide, manual stations, monitor devices, and control devices to the Desigo Fire Safety Modular/Cerberus PRO Modular System. The XDLC uses one network address on the system. The application program that is loaded into the on-board microprocessor controls the XDLC operation. The XDLC contains16 LEDs for diagnosis of problems. Ground fault detection is provided by the loop. All field devices connected to the XDLC are addressed and tested using the Device Programming Unit (DPU). p/n S54430-B8-A1
