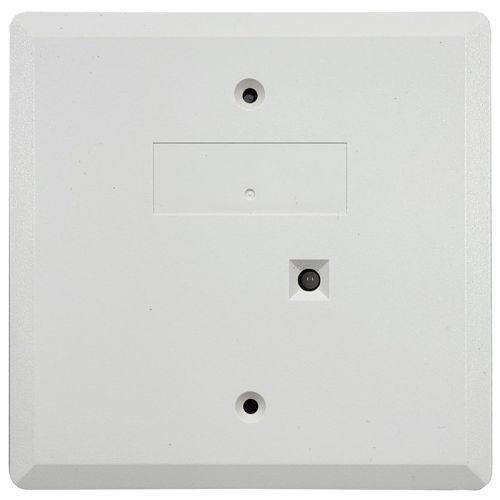

Siemens XTRI-R Single Input Module (with relay)

The Siemens XTRI-R is an intelligent single-input interface module with an addressable Form C relay, letting you monitor a dry contact and control a relay at the same address. It features ISOtechnology dual isolation for NFPA 72 Class X (Style 7) survivability, a tri-color status LED, and configurable wiring: isolator mode or polarity-insensitive wiring in non-isolator mode using SureWire. The relay and the input can be controlled as separate functions by the FACP. Also known as P/N S54370-B1-A1. Key Specifications: Type: Addressable single-input monitor module with built-in ISOtechnology dual isolator and Form C relay Inputs: Monitors one N.O. or N.C. dry contact; reports status to the panel Relay: Addressable Form C; resistive 4 A @ 125 VAC or 30 VDC; inductive up to 3.5 A @ 120 VAC (0.6 PF), 3.0 A @ 30 VDC (0.6 PF) Wiring & Isolation: Configure as isolator or non-isolator; up to 252 isolators per loop; up to 30 devices between isolators (mixed mode) Status Indication: Tri-color LED for normal, trouble, alarm Operating Voltage: 13 to 32 VDC, low current draw Addressing & Service: Electronic programming and testing with the Siemens DPU field-device programmer; front access to programming port and terminals Mounting: 4-inch square, 2.25 in deep box or 3.5 in double-gang box; 5-inch square off-white faceplate included System Compatibility: Desigo Fire Safety and Cerberus PRO loops; X-series devices can be interspersed with H-series on the same loop except HLIM and SBGA-34. Accessories: DPU Field-Device Programmer / Test Unit – addressing and functional testing
