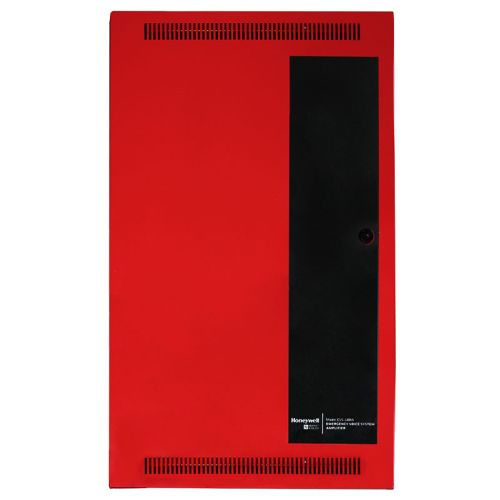

Silent Knight EVS-100W Intelligent 50/100-Watt Amplifier

The EVS-100W is an intelligent distributed audio amplifier for Silent Knight EVS systems. It delivers up to 100 watts of audio power at 25 Vrms or 70.7 Vrms, provides eight supervised speaker circuits, and includes its own power supply with battery backup. The unit supports three operating modes: 50 watts with 50 watts as backup, 100-watt single channel, or 100-watt single channel with 50-watt backup when paired with the EVS-100WBU. Up to four EVS-100W amplifiers can be used per system, and they may be distributed across as many as 32 audio circuits. A built-in backup-amplifier test function, 400 Hz to 4 kHz bandwidth, and 520 Hz low-frequency tone support help meet NFPA 72 emergency communication needs. The EVS-100W connects to the EVS control panel with a six-wire run and can be mounted up to 6,000 feet from the panel. Key Specifications: Type: Intelligent distributed audio amplifier for EVS systems Output Power: 100 W total at 25 Vrms or 70.7 Vrms; configurable as 50 W + 50 W backup or 100 W single channel Speaker Circuits: Eight supervised outputs; circuits 1–4 up to 50 W total, circuits 5–8 up to 50 W total Wiring: Six conductors total, two for the voice bus and four for SBUS Distance from Panel: Up to 6,000 ft from the EVS control panel Compatibility: 5820XL-EVS (Version 14.0 or newer) and 6820EVS Power & Charging: 120 VAC 60 Hz or 240 VAC 50 Hz primary; battery charging capacity 7–35 Ah (18 Ah max in cabinet; use external cabinet for larger) Audio Performance: 400 Hz to 4 kHz bandwidth; supports ANSI 520 Hz low-frequency tones Compatible Modules & Accessories: EVS-100WBU – External backup amplifier (adds 50 W backup capability) RBB – Remote Battery Box accessory cabinet for up to 35 Ah batteries
