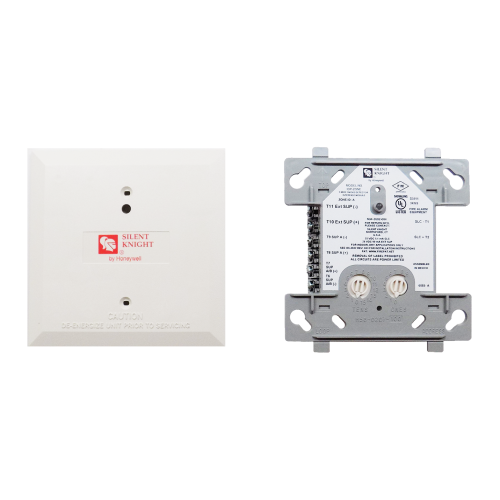

Silent Knight IDP-Zone Addressable Two-Wire Interface Module

The Silent Knight IDP-Zone Addressable Two-Wire Interface Module is an addressable two-wire interface module for use with Silent Knight IFP-series fire alarm control panels (FACPs). The IDP-Zone allows a Silent Knight FACP to interface and monitor two-wire conventional smoke detectors. This means you can retrofit an existing building and use existing conventional devices. The IDP-Zone is addressed through the signaling line circuit loop of the FACP. It transmits the status of one full zone of two-wire detectors to the FACP. Status conditions are reported as normal, open, or alarm. The IDP-Zone supervises the zone of detectors and the connection of the external power supply.
