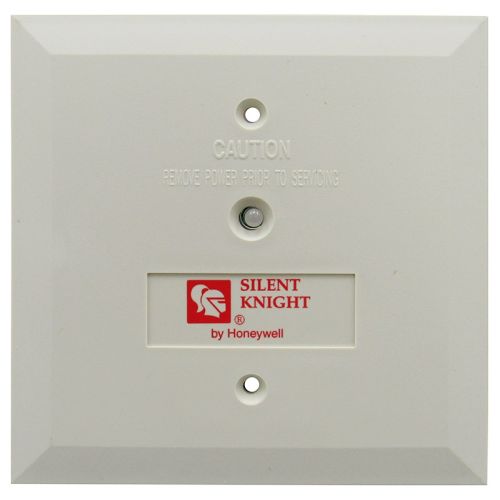

Silent Knight SD500-ARM Addressable Relay Module

The Silent Knight SD500-ARM Addressable Relay Module is an addressable device that adds two Form C contacts to the Farenhyt addressable system. The contacts are rated at 2.0 amps @ 30 VDC or .6 amp @ 120 VAC. Relay programming is completely flexible and can be mapped to zone conditions. Up to 127 relays can be used on each SLC loop. COMPATIBLE for use with the following Honeywell Silent Knight FACPs: — 6820: Addressable fire alarm control panel with up to 1,110 addressable points — 6820EVS: Addressable fire alarm control panel with an emergency mass notification system, up to 1,110 addressable points — 6808: Addressable fire alarm control panel with up to 198 addressable points — 6700: Addressable fire alarm control panel with up to 100 addressable points — 5820XL: Addressable fire alarm control panel — 5820XL-EVS: Addressable fire alarm control panel with an emergency communication systems — 5808: Addressable fire alarm control panel — 5700: Addressable fire alarm control panel
