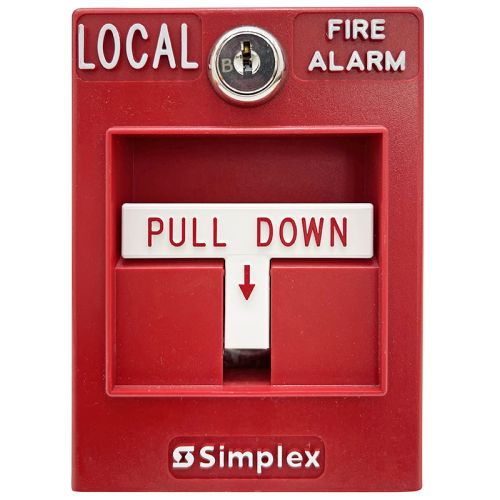

Simplex 2099-9755 Single-action Manual Pull Station

The Simplex 2099-9755 is a single action Non-Coded, Non-Addressable Manual Pull Station. Optional break glass rod included. Can be semi-flush mounted using a standard single gang 2 1/5 in. (64 mm) deep switch box. DO NOT RECESS BOX, mount boxflush or with 1/16 in. (2 mm) maximum protrusion. Can also be surface mounted on a Wiremold box model number V5744S, 4 5/8in. H x 2 7/8 in. W x 2 1/4 in. D (117 mm x 73 mm x 57 mm).2. For surface mount, use 2975-9178 or 2099-9022 boxes. For semi-flush mount, use a 4 in. (102 mm) squarebox with a single gang cover plate. NOTE: B Key not included. B Key sold separately.
