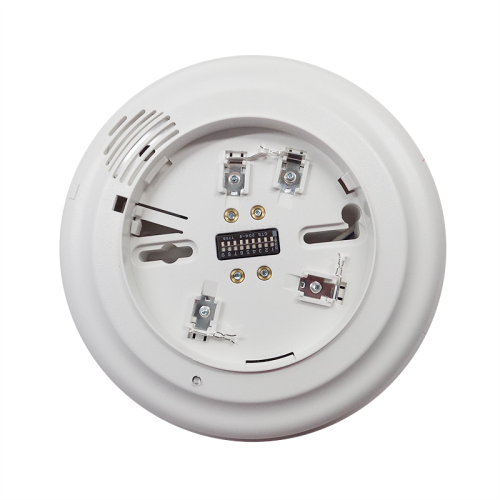

Simplex 4098-9794 TrueAlarm Sounder Base
$90.00
The Simplex 4098-9794 TrueAlarm Analog Addressable Sounder Base fits TrueAlarm Photoelectric, Ionization, and Heat Sensors.
This product is for use with the following Simplex panels:
— 4007ES, 4010, 4010ES, 4100ES, and 4100U Series control panels; and 4008 Series control panels with reduced feature set.
— 4020, 4100, and 4120 Series control panels, and Universal Transponders equipped for MAPNET II operation.
FEATURES:
— Powered from 24 VDC or from a compatible Notification Appliance Circuit (NAC)
— Synchronized via communications or by the NAC, if NAC powered
— Sounder can be manually activated from the control panel
— Base mounted address selection allows the address to remain with its programmed location when the sensor is removed for service or type change.
— Connections for Remote LED Alarm Indicator or Unsupervised Relay.
COMPATIBLE OPTIONAL ACCESSORIES:
— 4098-9822 LED Annunciation Relay
— 2098-9808 Remote red LED Alarm Indicator mounts ona single gang box to provide status indications where the sensor location may not be readily visible.
