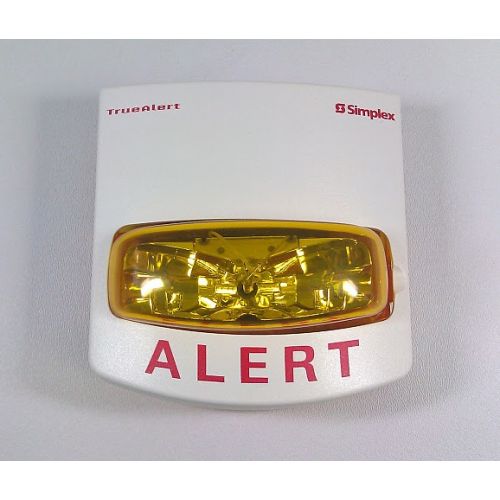

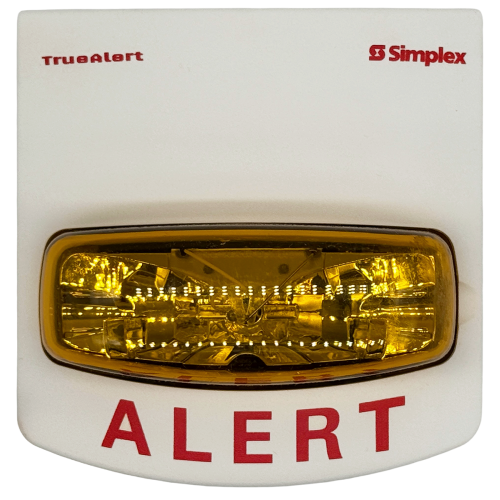

Simplex 4906-9107 Amber Lens Wall Mount Strobe (white)

$150.00
Availability:
2 in stock
Warranty:
90 Days
Condition:
New
Quantity:
- +

Product Description

The Simplex 4906-9107 Amber Lens Wall Mount Strobe (Visible Only, V/O) is designed for Mass Notification.

Intensity selectable as 15, 30, 75, or 110 cd; synchronized 1 HZ flash

Compatible with synchronized NAC, SmartSync 2-wire circuit, and separate synch modules.
Please note: All parts should be installed and tested by a certified fire alarm company.

Questions (4)

What are the electrical and physical specifications for this product?
Answer:
Voltage Range: Regulated 24 VDC

Flash Rate: 1 Hz

Synchronized NAC Loading: Up to 35 synchronized strobes maximum per NAC

Temperature Range: 32° to 122° F (0° to 50° C)

Humidity Range: 10% to 93%, non-condensing at 100° F (38° C)

Connections: Terminal blocks for 18 AWG to 12 AWG (0.82 mm2 to 3.31 mm2 ); two wires per terminal for in/out wiring

Housing Dimensions: (with lens) 5-1/8” H x 5” W x 2-3/4” D (130 mm x 127 mm x 70 mm)
What are the overall uses for this product?
Answer:
TrueAlert amber lens multi-candela strobes provide non-fire alarm alert notification for use with Emergency Communications systems where additional response information is provided by audio or textual appliances. Strobe housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4” square standard electrical box. The cover can be quickly removed (a tool is required) and the enclosure design is impact and vandal resistant. Multi-Candela Output. During installation, a selection plug at the back of the housing determines the desired strobe intensity. An attached flag with black letters on a highly visible yellow background allows the selected intensity to be seen at the side of the strobe lens.
